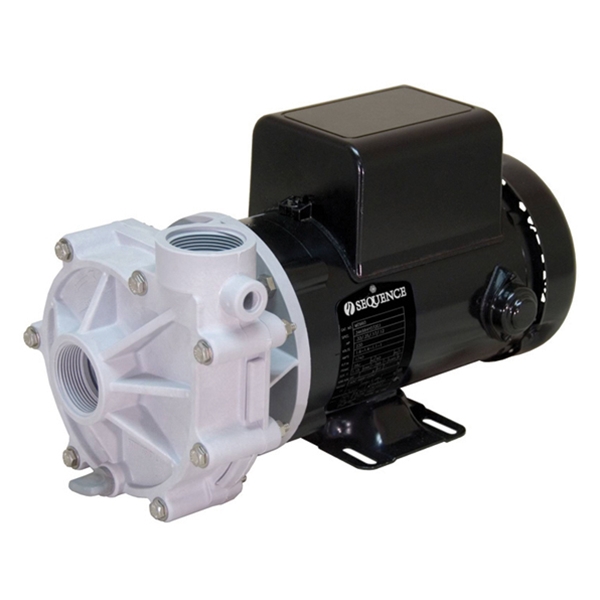

Sequence Power 1000 11000PWR72 Waterfall Pump – 11,000 GPH

For the applications that demand high performance, we offer the Sequence Power 1000 11000PWR72 Waterfall Pump with abundant flow and pressure. The Power Series is made for those demanding applications where the constraint for high pressure is NOT subject to negotiation!

The Sequence Power 1000 11000PWR72 Waterfall Pump puts the horsepower and efficiency into the pressure side of the performance requirement but maintains flow rates that will meet the most challenging of scenarios. Motor is totally enclosed and fan-cooled for durability.

Key Features

• Massive flow
• The Sequence Power 1000 11000PWR72 Waterfall Pump is made in the USA
• 1-1/2″ FPT (female threaded) suction port
• 1-1/2″ FPT (female threaded) discharge port
• 230 V or 460 V motor
• Supplied with a 230 Volt, 8 ft. power cord
• Quiet operation
• The Sequence Power 1000 11000PWR72 Waterfall Pump is suitable for waterfalls and water courses

Warranty

• 3-year manufacturer’s limited warranty
• Special Warranty Information for Sequence Pumps
  Due to the technical nature of these pumps, the pump must be returned and inspected BEFORE the warranty can be honored – we will assist you with the claim but you may be required to ship your pump to the manufacturer for warranty service

IMPORTANT

• DO NOT SUBMERSE !
• The Sequence Power 1000 11000PWR72 Waterfall Pump must be hard-wired to a GFCI (Ground Fault Circuit Interrupter) protected circuit by a licensed electrician
• The Sequence Power 1000 11000PWR72 Waterfall Pump is not approved for use in swimming pools or salt water
• The Sequence Power 1000 11000PWR72 Waterfall Pump is not a suction pump – a priming pot is required (sold separately)

Specifications

Sequence Part Number	11000PWR72
HP	2
Maximum Flow Rate	11,000 GPH
Maximum Head	72 ft.
Power Consumption @ 230 V	2,056 W / 8.58 A
Suction	1-1/2″ FPT (female threaded)
Discharge	1-1/2″ FPT (female threaded)
Power Cord Length	8 ft. (230 V)
Voltage	230 V, 60 Hz. 460 V, 60 Hz.





Accessory Products

Priming Pot / Basket Strainer 90 C.I. with clear easy-lock lid 1-1/2″ FPT / 1-1/2″ buttress inlet x 1-1/2″ union flange outlet includes adapters to mate with Sequence pumps

High Volume Centrifugal Pump Intake Filter – 3″ (PIF3) Intake screen for high volume applications Allows fine particles through, yet still keeps out large objects such as sticks, fish and weeds Made from epoxy-coated heavy gauge galvanized wire Will not rust or corrode Mesh size is 1/2″ x 1″ Included PVC swing check valve keeps your pump primed 3″ connection Suitable for maximum flow rate of 13,500 GPH Measures 11″ dia. x 30″ L
