Savio Compact Skimmerfilter

Savio Compact Skimmerfilter – 8.5″ Faceplate – 300 Sq.Ft. Surface Area

$202.50 – $331.10

For ponds up to 300 sq.ft. surface area. The Savio Compact Skimmerfilter is a sturdy multi-functional filtration system that reduces maintenance, collects debris, and hides unsightly pumps and plumbing.

$331.10
$202.50
$223.30
$223.90
Category: Tags: , , ,

Savio Compact Skimmerfilter – 8.5″ Faceplate – 300 Sq.Ft. Surface Area

The Savio Compact Skimmerfilter is a sturdy multi-functional filtration system that reduces maintenance, collects debris, and hides unsightly pumps and plumbing. Use the Savio Compact Skimmerfilter to keep your pond free from debris and your water crystal clear.

The Savio Compact Skimmerfilter is based on the same advanced design as the larger Savio Skimmerfilter but on a smaller scale. It features innovative technology that provides the most complete filtration available.

Skimming Action – Pulls debris from the surface of the water, capturing it in a rigid leaf basket with a handle for clean, no mess disposal.

Biological Filtration – Filter media cartridges provide a surface for beneficial bacteria to colonize the Savio Compact Skimmerfilter, converting biological waste from fish, ammonia and other toxins to inert forms for healthier ponds.

Mechanical Filtration – The Savio Compact Skimmerfilter protects and extends the life of your pump, providing a place to conceal ugly equipment and plumbing. When used with a biological filtration system, the Savio Compact Skimmerfilter prefilters debris allowing your filter to work more efficiently.

Although compact in size compared to the larger Savio Skimmerfilter, it still boasts the same durable, injection-molded housing that has won the acclaim of landscape professionals everywhere. Like the Savio Skimmerfilter, this all-in-one approach eliminates the need for extra plumbing and equipment, while reducing plumbing.

PondUSA.com are a Savio Authorized Dealer
PondUSA.com is a Savio Authorized Dealer



Savio Compact Skimmerfilter - How It Works - UV filtration is optional
Savio Compact Skimmerfilter – How It Works – UV filtration is optional


Key Features

  • 8.5″ weir opening
  • Removes up to 85 % of debris before it sinks
  • Macro filtration traps large debris
  • One built-in UV port for optional UV clarifier – eliminates green water
  • Bio-mechanical filtration maintains healthy living bacteria and polishes water
  • Sturdy locking cover
  • Bio-mechanical filter mat and frame
  • Rugged leaf basket
  • Integrated water-stop flange
  • Injection molded housing provides strength and resists warping



Savio Compact Skimmerfilter - Components
Savio Compact Skimmerfilter – Components


Warranty

  • 5-year manufacturer’s limited warranty


IMPORTANT

  • The Savio Compact Skimmerfilter is not approved for use in swimming pools or salt water


Specifications

Savio Part Number CSW085
Max. Pond Surface Area 300 sq.ft.
Recommended Flow Rate 1,200 – 3,500 GPH
Weir Size 8.5″
Pump Chamber Dimensions 8″ W x 14″ H
Skimmer Dimensions 23″ L x 18″ W x 20″ H



Downloads

PDF File: Savio Livingponds Design & Construction Guide
PDF File: Savio Skimmerfilter Operating Manual (use as a guide only, this is the Operating Manual for the larger Savio Skimmerfilter)



Accessory Products

Savio 18 Watt UVinex UV Clarifier

Savio 18 Watt UVinex UV Clarifier (SUV018A)

A natural and safe approach to controlling all types of unwanted algae. When properly used the UVinex system also assists in the control of parasites and bacteria. Providing clear, clean, safe, pristine water. Great when there are small children and pets around. No plumbing knowledge required! Modular design allows for easy installation. This integrated approach costs less than buying a separate standalone component and is easier to maintain. A great product that assists in making your water feature one step closer to maintenance free existence.

  • For ponds up to 1,800 gallons
  • Max. flow rate of 1,500 GPH
  • Durable coated bulb technology
  • No quartz sleeve to break
  • Simple plug ‘n play installation
  • 12 ft. power cord
  • Increases the effectiveness of your filtration system
Savio 18 Watt UVinex UV Clarifier

Savio 28 Watt UVinex High Output UV Clarifier (SUV2800HO)

A natural and safe approach to controlling all types of unwanted algae. When properly used the UVinex system also assists in the control of parasites and bacteria. Providing clear, clean, safe, pristine water. Great when there are small children and pets around. No plumbing knowledge required! Modular design allows for easy installation. This integrated approach costs less than buying a separate standalone component and is easier to maintain. A great product that assists in making your water feature one step closer to maintenance free existence.

  • For ponds up to 2,200 gallons
  • Max. flow rate of 2,000 GPH
  • Durable coated bulb technology
  • No quartz sleeve to break
  • Simple plug ‘n play installation
  • 12 ft. power cord
  • Increases the effectiveness of your filtration system

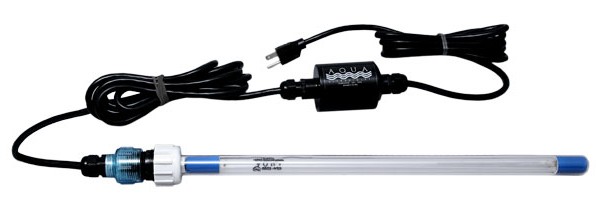

Aqua UV 15 Watt Retrofit UV Clarifier

Aqua UV 15 Watt Retrofit UV Clarifier (A00357)

Used as a clarifier the 15 Watt Aqua UV Retrofit UV Clarifier will control green water in freshwater environments that have 50% to 75% plant coverage and partial shade.

  • For ponds up to 2,000 gallons
  • When the pond skimmer lid is lifted, the clear transformer cap glow tells you that the UV lamp is on
  • Highest quality quartz for optimum UV transmission
  • The longest UV lamp life on the market, 14 months
  • Easy maintenance, one end 4 pin lamp connection
Savio K5002 Faux Rock Cover

Savio Faux Rock Cover (K5002)

Crafted from lightweight materials, this high quality, durable covering allows easy access to your Savio Compact Skimmerfilter. Provides natural camouflage in the shape of a realistic granite outcropping – made with impressions taken from actual stone. Color is chemically bonded to polyurea substrate for superior UV fade resistance.

  • Lightweight “stone” hides your equipment from view
  • Useful for a variety of outdoor irrigation applications
  • Rough textured surface readily accepts paint
  • 24″ L x 24″ W x 4″ H
Savio K3018 Compact Skimmerfilter Discharge Kit for Savio Water Master Clear Pumps

Savio Compact Skimmerfilter Discharge Kit for Savio Water Master Clear Pumps (K3018)

Quick Connect Kit for Savio Water Master Clear Pumps. Kit is set at the proper height to exit the Savio Compact Skimmerfilter.
Savio K3014 Compact Skimmerfilter Discharge Kit for Savio Water Master Solids Pumps

Savio Compact Skimmerfilter Discharge Kit for Savio Water Master Solids Pumps (K3014)

Quick Connect Kit for Savio Water Master Solids Handling Pumps. Kit is set at the proper height to exit the Savio Compact Skimmerfilter.



Replacement Parts

At PondUSA.com we carry the complete line of Savio replacement parts for your Savio Compact Skimmerfilter. Whether you need replacement filter media, a weir assembly, a UV lamp or any other spare parts … we can help.

Click here to see the complete list of replacement parts available for your Savio Compact Skimmerfilter.

Savio Compact Skimmerfilter - Replacement Parts
Savio Compact Skimmerfilter – Replacement Parts
