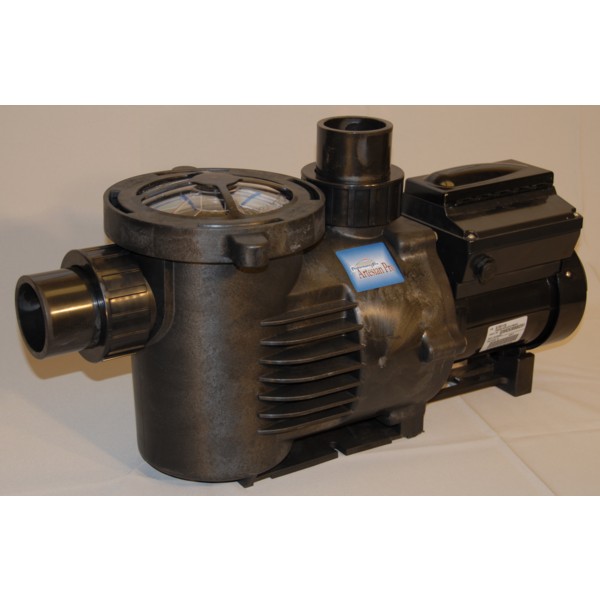

PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump – 12,480 GPH

The PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump is the pump you need for your higher flow applications. It not only delivers great flow rates at useable heads, but it does so efficiently! You get the safety and convenience of self-priming along with great energy savings. For ease of use, the PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump provides a large strainer basket and an easy open Lexan lid. The specially designed lid and clamp ring insure a positive seal with very little o-ring wear.

Key Features

• Money-saving high efficiency pump and motor unit
• The PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump is designed to operate anywhere on its performance curve
• 3″ suction and discharge ports with quick disconnect unions
• Long-life corrosion resistant 316 stainless steel shaft seals
• Impeller interchangeability allows you to easily change your pump’s performance
• Top-of-the-line US motors
• Motor is totally enclosed for excellent protection and long-term reliability
• Both pump end and motors are designed for quiet operation
• The PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump is supplied without power cord
• A salt water kit is available separately
• 5 GPM minimum recommended continuous flow rate
• Safety first – out of the pond pumps help protect both you and your fish from annoying and potentially dangerous oil or electrical leaks

Warranty

• 3-year manufacturer’s limited warranty (fresh water applications)
• 1-year manufacturer’s limited warranty (salt water applications)

IMPORTANT

• DO NOT SUBMERSE !
• The PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump is supplied without power cord and must be hard-wired to a GFCI-protected circuit by a licensed electrician
• The PerformancePro Artesian Pro AP 2-HH High Head Waterfall Pump is not approved for use in swimming pools or salt water (a salt water kit is available separately)

Specifications

PerformancePro Part Number	AP 2-HH
HP	2
RPM	3,450
Maximum Flow Rate	12,480 GPH @ 7 ft.
Maximum Head	81 ft.
Maximum Power Consumption	2,300 W / 9.9 A
Amps @ 230 V @ Max. Head	5.5 A @ 81 ft.
Amps @ 230 V @ Max. Flow	7.5 A @ 12,480 GPH @ 7 ft.
Suction	3″ with quick disconnect unions
Discharge	3″ with quick disconnect unions
Power Cord Length	n/a
Voltage	208-230 V, 60 Hz.



Accessoriy Products

	ProTect (MPC-10) instant protection for your pump and motor made of UV resistant thermoplastic, insulated with retardant foam for noise abatement assembly is easy and requires no tools
	Saltwater Kit (SWKIT) includes PVC shaft sleeve and Monel w/ SiC seal installed in pump
	High Volume Centrifugal Pump Intake Filter – 3″ (PIF3) Intake screen for high volume applications Allows fine particles through, yet still keeps out large objects such as sticks, fish and weeds Made from epoxy-coated heavy gauge galvanized wire Will not rust or corrode Mesh size is 1/2″ x 1″ Included PVC swing check valve keeps your pump primed 3″ connection Suitable for maximum flow rate of 13,500 GPH Measures 11″ dia. x 30″ L
	High Volume Centrifugal Pump Intake Filter – 4″ (PIF4) Intake screen for high volume applications Allows fine particles through, yet still keeps out large objects such as sticks, fish and weeds Made from epoxy-coated heavy gauge galvanized wire Will not rust or corrode Mesh size is 1/2″ x 1″ Included PVC swing check valve keeps your pump primed 4″ connection Suitable for maximum flow rate of 21,000 GPH Measures 11″ dia. x 30″ L



Downloads

PDF File: PerformancePro Artesian Pro High Head Waterfall Pumps Performance Curves
