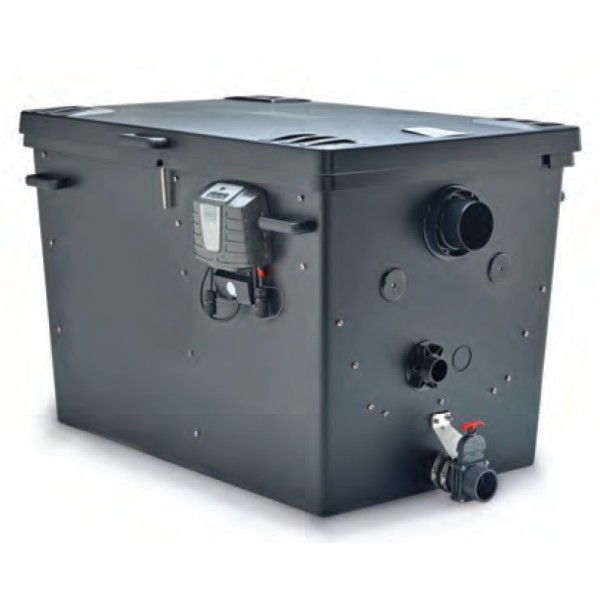

Oase ProfiClear Premium Compact-L Pond Filter EGC (73379)
The Oase ProfiClear Premium Compact-L Pond Filter EGC is a powerful filtration alternative for ponds up to 31,500 gallons. This pump-fed, flow-through drum filter provides effective cleaning and polishing of water down to 80 microns, effective aeration in the moving bed module, and quiet operation thanks to extensive noise insulation on the lid. The Moving Bed System with Hel-X 13 bio-media offers effective nutrient and pollutant decomposition in the water and a large surface area for the settlement of microorganisms and beneficial bacteria. The new Hel-X 13 biomedia is so called because it has a 13 % increase in the biological settlement surface area (and 40 % more settlement area than Kaldness K1 Media). The Oase ProfiClear Premium Compact-L Pond Filter EGC promises minimal maintenance and ensures seamless integration of Oase Bitron C UV Clarifiers.
This compact drum filter is part of the new Easy Garden Control (EGC) family which means it can be conveniently controlled and monitored via tablet or smartphone app, with the aid of the Inscenio Oase EGC Controller Cloud. Besides controlling the filter, it will be possible to make in-depth analysis on cleaning cycles and temperature curves. If any technical or performance problems occur, a notification can be sent to a registered email address via the app so a resolution can be found immediately. When properly sized, paired, and registered online, this product also qualifies for the Clear Water Guarantee.
Key Features
- The Oase ProfiClear Premium Compact-L Pond Filter EGC utilizes a rotating screen to remove debris and moving bed filtration to strip ammonia and nitrites from the water
- The Oase ProfiClear Premium Compact-L Pond Filter EGC is a fully automatic filter system that offers hands-free operation of even fully stocked koi ponds
- Pump-fed, flow-through drum filter provides effective cleaning and polishing of water down to 80 microns
- Drum is fully self-cleaning with a built-in 29 psi high-pressure cleaning pump and automatic 4″ waste discharge outlet
- The Oase ProfiClear Premium Compact-L Pond Filter EGC uses a high pressure pump to keep the tiny perforations in the sieve clean automatically – the powerful pump draws significant wattage during operation, but only operates a fraction of the time to keep total electrical usage minimal – when the pump is not running, the filter only uses 5 watts of electricity
- Moving Bed System with 40 liters of Hel-X Bio-media provides optimal biological filtration capable of decomposing up to 10 oz. of food waste per day
- Filter capacity can be upgraded by adding an additional 20 liters of Hel-X Bio-media
- Micro control system offers a choice of manual cleaning, time interval cleaning or full automatic cleaning via sensor
- Can be buried up to UVC mounts for maximum versatility in filter placement near existing electrical source
- Pre-installed insulation on the lid ensures quiet operation during cleaning cycles
- Digital temperature display provides accurate water temperatures for seasonal maintenance
- Add an optional Oase Bitron C UVC clarifier to the Oase ProfiClear Premium Compact-L Pond Filter EGC for enhanced clarity and cleaner water
- Integrated linear air stones provide extra oxygen in the module with included connection kit for Oase AquaOxy 450 Pond Aeration Pump (not included)
- Fully control your Oase ProfiClear Premium Compact-L Pond Filter EGC with the Easy Garden Control (EGC) system from anywhere in the world (sold separately)
- The Oase ProfiClear Premium Compact-L Pond Filter EGC is part of the new Easy Garden Control (EGC) family which means it can be conveniently controlled and monitored via tablet or smartphone app, with the aid of the Oase EGC Controller Cloud (iOS or Android) from anywhere in the world (sold separately)
- Qualifies for the Oase Clear Water Guarantee when paired with the proper pump and Oase Bitron UVC Clarifier
When a pond owner uses specifically marked CWG products, they are guaranteed to have clear water and minimal maintenance. We guarantee that when a tape measure is placed vertically into the pond to a depth of 3 feet, the water will be clear enough to read the 1 inch mark at the tip of the tape measure.
| No Fish Load | Avg. Fish Load | Heavy Fish Load | UV Clarifier | Pump |
| <31500 gal | <15750 gal | <7875 gal | Bitron C 110 |
 |
 |
Warranty
- 3-year manufacturer’s limited warranty (2 Years + 1 Year Extension upon Product Registration)
IMPORTANT
- DO NOT SUBMERSE !
- The Oase ProfiClear Premium Compact-L Pond Filter EGC is not approved for use in swimming pools or salt water
Specifications
| Oase Part Number | 73379 |
| Maximum Pond Sizes * | 31,500 gallons (no fish) 15,750 gallons (small fish) 7,875 gallons (koi) |
| Minimum Flow Rate | GPH |
| Maximum Flow Rate | 5,280 GPH |
| Inlet | 3″ + UVC connection |
| Outlet | 4″ / DN 110 |
| Sludge Drain Connection | 3″ / 4″ |
| Power Consumption | 5 W |
| Power Consumption (Cleaning) | 870 W |
| Power Cord Length | 16.4 ft. + 3.3 ft. (power supply) |
| Voltage | 120 V / 60 Hz. |
| Number of Nozzles | 2 |
| Coarse Debris Extraction | 80 microns |
| Cleaning Flow Rate | (2) 1 gallon per minute |
| Cleaning Pump | 2 bar (29 PSI) |
| Biological Filter Surface | sq.ft. |
| Biological Filter Surface Protected | sq.ft. |
| Filter Dimensions | 53″ L x 35-1/2″ W x 32-1/2″ H |
| Net Weight | lbs. |
* All figures are based on the following assumptions: Minimum pond depth of 18 inches. Maximum flow rate shown above is circulated through the filter. Filter is operated continuously.
Pond size recommendations are approximate and are only given for general guidance. All performance data were obtained under controlled conditions. Real-world performance may vary due to local circumstances.
Accessory Products
 |
Oase EGC Controller Cloud (72380)
|
 |
Oase Connection Cable EGC (72381, 72383, 72384)
|
 |
Oase Cable Connector EGC (72385)
|
