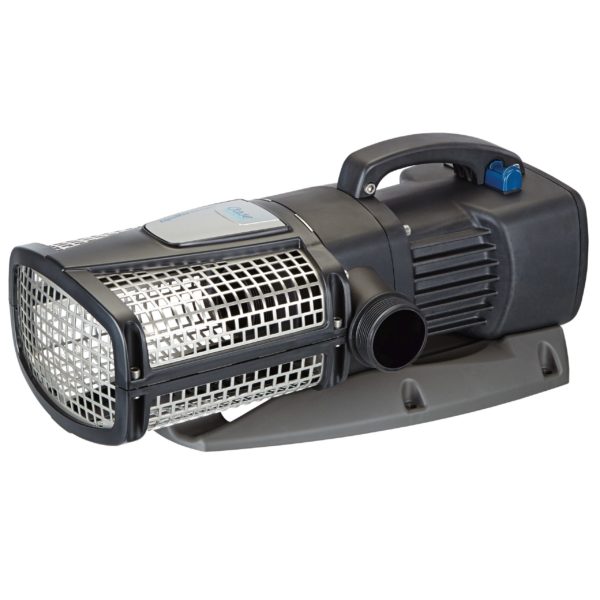

Oase Aquamax Eco Expert 11500 Filtration Pump – 11,500 GPH (57963)

The Oase AquaMax Eco Expert 11500 Filtration Pump efficiently displaces coarse debris particles up to 11 mm in size, helping to maintain the ecosystem’s health, natural balance and beauty. It functions as the heart of the pond and features a robust stainless steel intake screen that displaces coarse debris particles up to 11 mm in size.

The Oase AquaMax Eco Expert 11500 Filtration Pump features Environmental Function Control (EFC), an automatic system shut-off that prevents damage in the event of a dry run or blockage. It also features patented Seasonal Flow Control (SFC), which allows for intelligent and environmentally-conscious regulation of flow rate and pumping height based on water temperature. This model comes with a 33 ft. power cord and can function when submersed or inline, supporting discreet and strategic placement in aquatic environments.

The Oase AquaMax Eco Expert 11500 Filtration Pump is part of the new Easy Garden Control (EGC) family which means it can be conveniently controlled and monitored via tablet or smartphone app, with the aid of the Oase EGC Controller Cloud. If any technical or performance problems occur, a notification will be sent via the app so a resolution can be found immediately.

Key Features

• The Oase AquaMax Eco Expert 11500 Filtration Pump is a powerful, energy-efficient brushless DC filtration pump for demanding filter systems or for large water feature installations
• Quiet, energy efficient motor maintains the peaceful environment of any outdoor sanctuary or indoor water feature
• Robust stainless steel intake screen displaces coarse debris particles up to 11 mm in size
• Patented Seasonal Flow Control (SFC) allows for intelligent and environmentally-conscious regulation of flow rate and pumping height based on water temperature – 50 % energy savings is possible
• Environmental Function Control feature (EFC) shuts off the pump in the event of a dry run or blockage to stop the pump from damaging itself
• Safely endures any seasonal conditions with patented frost protection down to -4 degrees Fahrenheit (-20 degrees Celsius)
• The Oase AquaMax Eco Expert 11500 Filtration Pump operates on 230 V
• Includes a 33 ft. power cord
• Inline capability allows the pump to be set up submerged or dry
• Adjustable flow control (when connected to the Oase EGC Controller Cloud) fine-tunes the flow rate and pumping height
• Resistance to chlorine and seawater (pool and salt water capable)
• An adapter set for connecting 1-1/2″ and 2 ” tubing is included with the Oase AquaMax Eco Expert 11500 Filtration Pump
• Fully controllable through the Oase Easy Garden Control (EGC) connection and using an app on your smartphone or tablet (iOS or Android)
• When properly sized, paired, and registered online, this product qualifies for the Clear Water Guarantee

Warranty

• 3-year manufacturer’s limited warranty (+ 2 years upon product registration)

IMPORTANT

• The Oase AquaMax Eco Expert 11500 Filtration Pump must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 230 Volt outlet
• The Oase AquaMax Eco Expert 11500 Filtration Pump may be used in chlorinated and salt water applications but it is not approved for use in swimming pools

Specifications

Oase Part Number	57963
Maximum Flow Rate	11,500 GPH
Maximum Head	31 ft.
Power Consumption	700 W
Discharge	2″ threaded
Filter Intake Surface	165 sq.in.
Coarse Debris Displacement Max.	0.44″
Fittings Included	(1) 1.5″ hose connector (1) 2″ hose connector (1) union nut (1) flat seal (1) hose clamp
Power Cord Length	33 ft.
Voltage	220-240 V / 50-60 Hz
Dimensions	21″ L x 9.8″ W x 8.7″ H
Net Weight	36 lbs.



Accessory Products

	Oase EGC Eco Control (72375) The Oase EGC Eco Control is an innovative EGC controller for smart regulation and control of Oase Eco Expert Pumps. The Oase EGC Eco Control features an illuminated, two-line display for easy read-out. The Oase EGC Eco Control displays dimming functions, SFC status changes, power consumption, rotation speeds, and total runtime of the connected pumps. Its robust, splash-proof IP 44 design allows for year-round use. It includes flexible fastening material for attachment directly on the pump, on a ground stake or for wall installation. Please click here for detailed information and specifications.
	Oase EGC Controller Cloud (72380) The Oase EGC Controller Cloud is the heart of the Oase Easy Garden Control (EGC) system. It enables the control of up to 10 EGC devices via tablet or smartphone with iOS or Android from your router connection or from the Oase Cloud. Complete control of your EGC system can be done from anywhere in the world when connected to the Oase Cloud. The integrated Wifi antenna connection technology lets you easily, conveniently and quickly read and regulate the information of your garden devices via smartphone or tablet. The Oase EGC Controller Cloud enables convenient operation of the connected devices via WiFi from up to 260 ft. (80 m) or from anywhere in the world using the Oase Cloud. Flexible fastening material is included for securing the Oase EGC Controller Cloud in the ground or on a wall. The controller housing has an IP64 waterproof rating which allows for all-season outdoor use and is rain and splash proof. Please click here for detailed information and specifications.
	Oase Connection Cable EGC (72381, 72383, 72384) The Oase Connection Cable EGC is a special cable for bi-directional communication between Oase EGC pumps, filters and control devices. Available in 8.2 ft. 16.4 ft. and 32.8 ft. lengths.
	Oase Cable Connector EGC (72385) The Oase Cable Connector EGC allows watertight connection of 2 EGC cables for extending cable lengths between Oase EGC pumps, filters and control devices. Please click here for detailed information and specifications.
