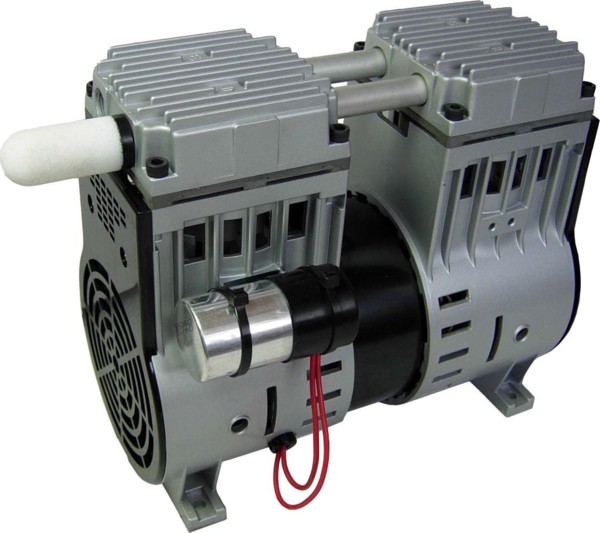

Matala 4 Acre Pond Air Compressor Kits (MPC-200A – MPC-200C-4 – MPC-200C1-4) – 3/4 HP
The Matala 4 Acre Pond Air Compressor Kits are designed for 24-hour operation and feature permanently lubricated bearings and lightweight aluminum components. They provide aeration to ponds up to 4 acres @ 16 ft. deep.
Key Features
- Matala 4 Acre Pond Air Compressor Kits are available as a stand-alone air compressor and an air compressor system with or without cabinet

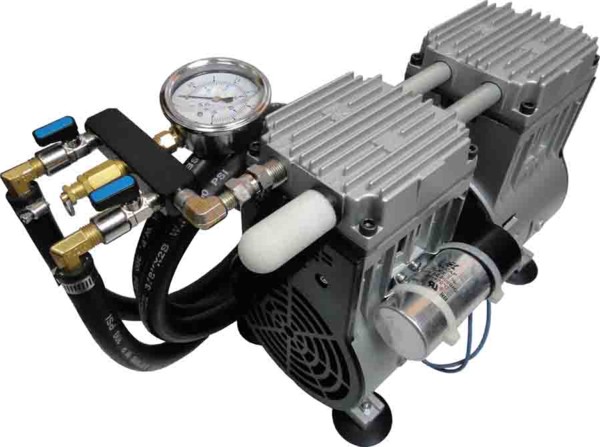

- Air compressor system includes air compressor, pressure gauge, air manifold kit and relief valve

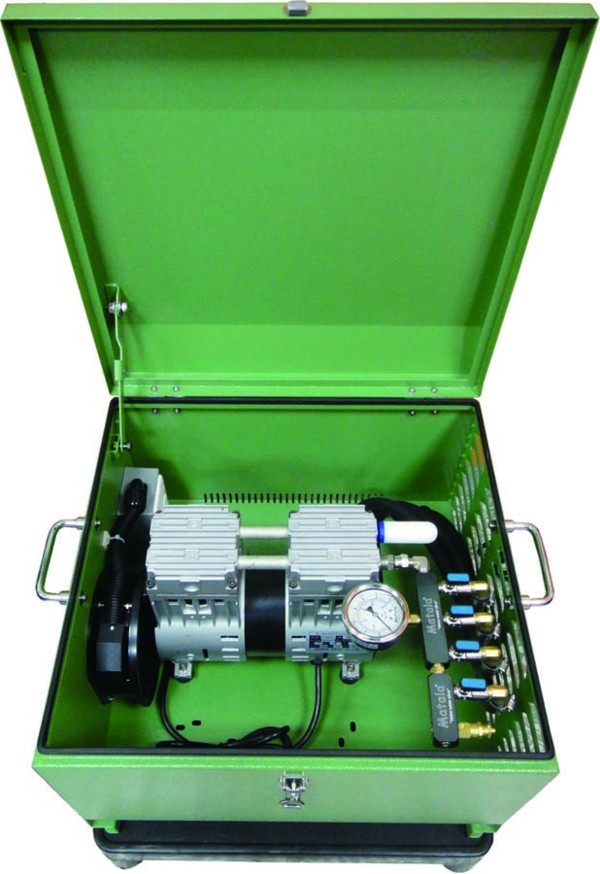

- Air compressor system with cabinet includes all the above plus a Matala Air Pump Cabinet which features weatherproof vents, ventilation fan, powder coated paint finish, lockable hatch, carrying handles, 2 outlets, tubing pop-outs, self-standing lid hinge and a Matala Elevated Base
- Rocking piston air compressor
- Lightweight aluminum components
- Wear resistant hard coated cylinders
- Easy to replace piston seal
- Permanently lubricated bearing
- Designed for 24 hour operation
- Inlet air filter and rubber pads included
- 120 Volt
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- Watch for possible condensation buildup in the air tubing (sold separately)
- The Matala 4 Acre Pond Air Compressor Kits must be installed a minimum of 12 inches above pond water level to prevent water from flowing back
- DO NOT SUBMERSE AIR PUMP !
- The Matala 4 Acre Pond Air Compressor Kits must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet !
- The Matala 4 Acre Pond Air Compressor Kits are not approved for use in swimming pools or salt water
Specifications
Matala Part Numbers | MPC-200A | MPC-200C-4 | MPC-200C1-4 |
Description | Air Compressor | Air Compressor System | Air Compressor System with Cabinet |
Pond Size | up to 4 acres @ 16 ft. deep | up to 4 acres @ 16 ft. deep | up to 4 acres @ 16 ft. deep |
Maximum Operating Depth | 40 ft. | 40 ft. | 40 ft. |
Maximum Air Flow Rate | 7.45 CFM | 7.45 CFM | 7.45 CFM |
Air Flow Rate @ 5 ft. Depth | 7.17 CFM | 7.17 CFM | 7.17 CFM |
Air Flow Rate @ 10 ft. Depth | 6.78 CFM | 6.78 CFM | 6.78 CFM |
Air Flow Rate @ 15 ft. Depth | 6.68 CFM | 6.68 CFM | 6.68 CFM |
Air Flow Rate @ 20 ft. Depth | 6.36 CFM | 6.36 CFM | 6.36 CFM |
Air Flow Rate @ 25 ft. Depth | 6.29 CFM | 6.29 CFM | 6.29 CFM |
Air Flow Rate @ 30 ft. Depth | 6.0 CFM | 6.0 CFM | 6.0 CFM |
Air Flow Rate @ 40 ft. Depth | 5.58 CFM | 5.58 CFM | 5.58 CFM |
Air Flow Rate @ 50 ft. Depth | 5.02 CFM | 5.02 CFM | 5.02 CFM |
Submersible | no | no | no |
HP | 3/4 HP | 3/4 HP | 3/4 HP |
Amps | 5.4 A | 5.4 A | 5.4 A |
Wattage | 597 W | 597 W | 597 W |
Voltage | 120 V / 60 Hz. | 120 V / 60 Hz. | 120 V / 60 Hz. |
Power Cord Length | 6 ft. | 6 ft. | 6 ft. |
Dimensions | 10.8 L x 6.5″ W x 9.5″ H |
