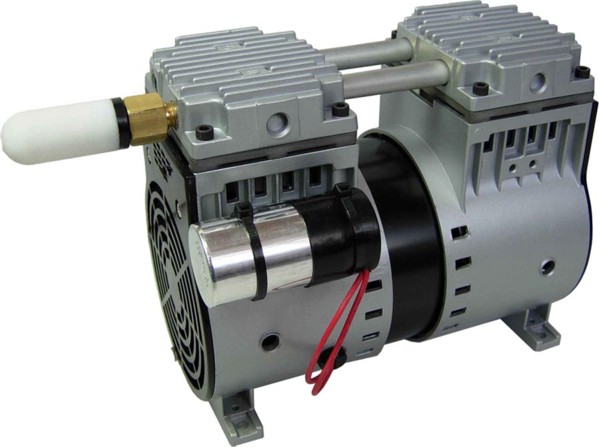

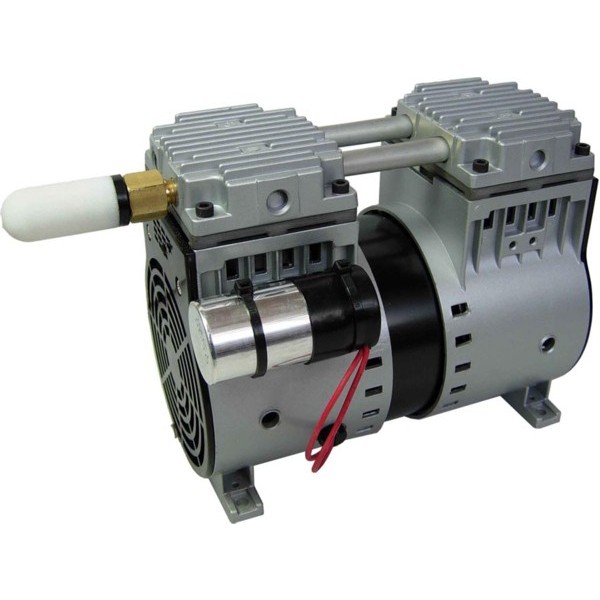

Matala 3 Acre Pond Air Compressor Kits (MPC-120A – MPC-120C – MPC-120C1) – 1/2 HP
The Matala 3 Acre Pond Air Compressor Kits are designed for 24-hour operation and feature permanently lubricated bearings and lightweight aluminum components. They provide aeration to ponds up to 3 acres @ 16 ft. deep.
|
|
|
|
Key Features
- Matala 3 Acre Pond Air Compressor Kits are available as a stand-alone air compressor and an air compressor system with or without cabinet

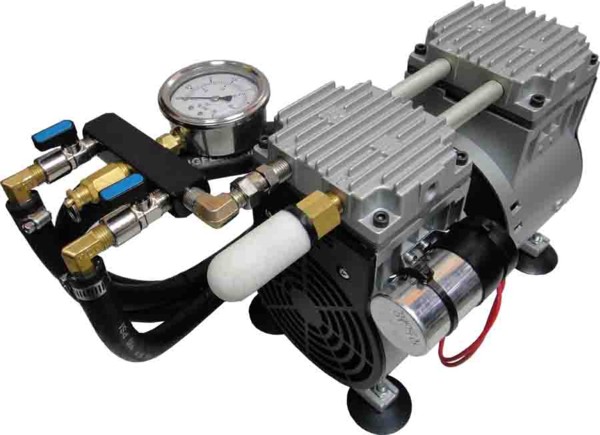

- Air compressor system includes air compressor, pressure gauge, air manifold kit and relief valve

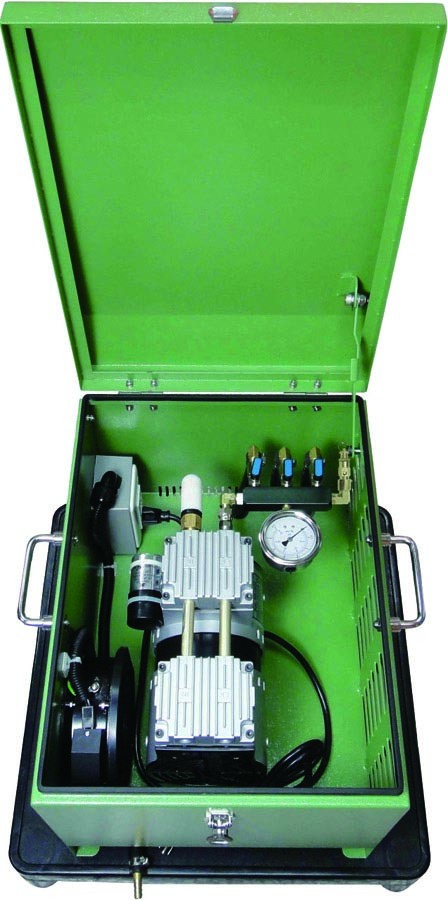

- Air compressor system with cabinet includes all the above plus a Matala Air Pump Cabinet which features weatherproof vents, ventilation fan, powder coated paint finish, lockable hatch, carrying handles, 2 outlets, tubing pop-outs, self-standing lid hinge and a Matala Elevated Base
- Rocking piston air compressor
- Lightweight aluminum components
- Wear resistant hard coated cylinders
- Easy to replace piston seal
- Permanently lubricated bearing
- Designed for 24 hour operation
- Inlet air filter and rubber pads included
- 120 Volt
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- Watch for possible condensation buildup in the air tubing (sold separately)
- The Matala 3 Acre Pond Air Compressor Kits must be installed a minimum of 12 inches above pond water level to prevent water from flowing back
- DO NOT SUBMERSE AIR PUMP !
- The Matala 3 Acre Pond Air Compressor Kits must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet !
- The Matala 3 Acre Pond Air Compressor Kits are not approved for use in swimming pools or salt water
Specifications
| Matala Part Numbers | MPC-120A | MPC-120C | MPC-120C1 |
| Description | Air Compressor | Air Compressor System | Air Compressor System with Cabinet |
| Pond Size | up to 3 acres @ 16 ft. deep | up to 3 acres @ 16 ft. deep | up to 3 acres @ 16 ft. deep |
| Maximum Operating Depth | 40 ft. | 40 ft. | 40 ft. |
| Maximum Air Flow Rate | 5.16 CFM | 5.16 CFM | 5.16 CFM |
| Air Flow Rate @ 5 ft. Depth | 4.7 CFM | 4.7 CFM | 4.7 CFM |
| Air Flow Rate @ 10 ft. Depth | 4.59 CFM | 4.59 CFM | 4.59 CFM |
| Air Flow Rate @ 15 ft. Depth | 4.42 CFM | 4.42 CFM | 4.42 CFM |
| Air Flow Rate @ 20 ft. Depth | 4.13 CFM | 4.13 CFM | 4.13 CFM |
| Air Flow Rate @ 25 ft. Depth | 3.96 CFM | 3.96 CFM | 3.96 CFM |
| Air Flow Rate @ 30 ft. Depth | 3.85 CFM | 3.85 CFM | 3.85 CFM |
| Air Flow Rate @ 40 ft. Depth | 3.36 CFM | 3.36 CFM | 3.36 CFM |
| Air Flow Rate @ 50 ft. Depth | 3.04 CFM | 3.04 CFM | 3.04 CFM |
| Submersible | no | no | no |
| HP | 1/2 HP | 1/2 HP | 1/2 HP |
| Amps | 3.81 A | 3.81 A | 3.81 A |
| Wattage | 433 W | 433 W | 433 W |
| Voltage | 120 V / 60 Hz. | 120 V / 60 Hz. | 120 V / 60 Hz. |
| Power Cord Length | 6 ft. | 6 ft. | 6 ft. |
| Dimensions | 9.4″ L x 6.3″ W x 7.8″ H |
