Matala 3 Acre Pond Aeration Kits (AK-120C – AK-120C-1) – 1/2 HP
Matala 3 Acre Pond Aeration Kits are professional aeration kits that are designed for easy installation and will help improve water quality, eliminate temperature stratification and promote a healthy environment for all aquatic life. They provide aeration to ponds up to 3 acres @ 16 ft. deep.
|
|
|
Key Features
- Matala 3 Acre Pond Aeration Kits are available with or without cabinet

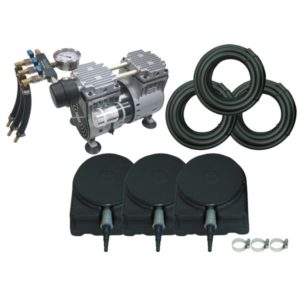

- Pond aeration kit without cabinet includes 1/2 HP air compressor, pressure gauge, air manifold kit and relief valve, (3) 3/8″ x 100 ft. Matala weighted airlines, (3) single air diffuser bases, fittings and clamps

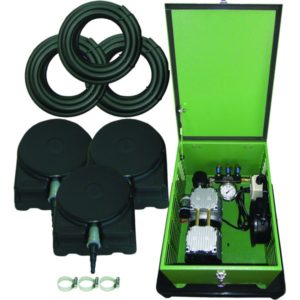

- Pond aeration kit with cabinet includes all the above plus a Matala Air Pump Cabinet which features weatherproof vents, ventilation fan, powder coated paint finish, lockable hatch, carrying handles, 2 outlets, tubing pop-outs, self-standing lid hinge and a Matala Elevated Base
- Rocking piston air compressor
- Lightweight aluminum components
- Wear resistant hard coated cylinders
- Easy to replace piston seal
- Permanently lubricated bearing
- Designed for 24 hour operation
- Inlet air filter and rubber pads included
- 120 Volt
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- Watch for possible condensation buildup in the air tubing (sold separately)
- The Matala 3 Acre Pond Aeration Kits must be installed a minimum of 12 inches above pond water level to prevent water from flowing back
- DO NOT SUBMERSE AIR PUMP !
- The Matala 3 Acre Pond Aeration Kits must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet !
- The Matala 3 Acre Pond Aeration Kits are not approved for use in swimming pools or salt water
Specifications
| Matala Part Numbers | AK-120C | AK-120C-1 |
| Description | 1/2 HP Pond Aeration Kit | 1/2 HP Pond Aeration Kit with Cabinet |
| Pond Size | up to 3/4 acre @ 8 ft. deep up to 1-1/2 acres @ 12 ft. deep up to 3 acres @ 16 ft. deep |
up to 3/4 acre @ 8 ft. deep up to 1-1/2 acres @ 12 ft. deep up to 3 acres @ 16 ft. deep |
| Maximum Operating Depth | 40 ft. | 40 ft. |
| Maximum Air Flow Rate | 5.16 CFM | 5.16 CFM |
| Submersible | no | no |
| HP | 1/2 HP | 1/2 HP |
| Amps | 3.81 A | 3.81 A |
| Wattage | 433 W | 433 W |
| Voltage | 120 V / 60 Hz. | 120 V / 60 Hz. |
| Power Cord Length | 6 ft. | 6 ft. |
| Air Stones | (3) single air diffuser bases | (3) single air diffuser bases |
| Length of Airline | (3) 100 ft. of 3/8″ self-weighted airline | (3) 100 ft. of 3/8″ self-weighted airline |
