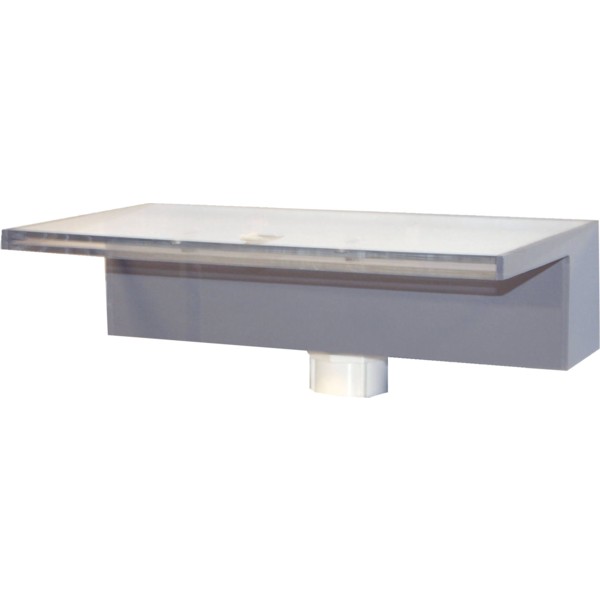

Calais 12″ Acrylic Sheer Falls Waterfall Weir – 11″ Spillway
Create stunning water blades with the Calais 12″ Acrylic Sheer Falls Waterfall Weir. It is ideal when a formal appearance is desired. The Calais 12″ Acrylic Sheer Falls Waterfall Weir provides increased aeration and fantastic water sound and may be used in chlorinated water, such as swimming pools and spas.
The Calais 12″ Acrylic Sheer Falls Waterfall Weir is available without lights or backlit with a white or blue LED light bar.
|
|
|
Key Features
- 11″ weir opening / spillway
- (1) 1-1/4″ FPT (female threaded) bottom entry port
- 5″ weir lip
- Fantastic water sound
- Good for pond aeration
- Can be used indoors or out
- The Calais 12″ Acrylic Sheer Falls Waterfall Weir may be used in chlorinated water, such as swimming pools and spas
- The Calais 12″ Acrylic Sheer Falls Waterfall Weir is available without lights or backlit with a white or blue LED light bar
- LED light bar is installed in a separate tube and mounted behind the water flow
|
|
|
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- For a clear sheet of water, keep the waterfall height limited to about 3 ft. above the pond water level – higher falls will cause the sheet to break up
- The Calais 12″ Acrylic Sheer Falls Waterfall Weir may be used in chlorinated water, such as swimming pools and spas
- LED light bar transformer must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet
Specifications
| Calais Part Numbers | SEG5010 | SEG5010LW | SEG5010LB |
| LED Light Bar | n/a | white | blue |
| Waterfall Spillway Width | 11″ | 11″ | 11″ |
| Weir Lip | 5″ | 5″ | 5″ |
| Recommended Flow Rate | 1,000 GPH | 1,000 GPH | 1,000 GPH |
| Inlet | (1) 1-1/4″ FPT (female threaded) | (1) 1-1/4″ FPT (female threaded) | (1) 1-1/4″ FPT (female threaded) |

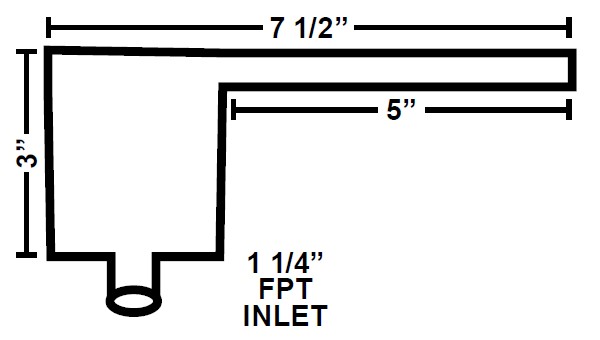

| Dimensions | 11.81″ W x 7.5″ D x 3″ H | 11.81″ W x 7.5″ D x 3″ H | 11.81″ W x 7.5″ D x 3″ H |
