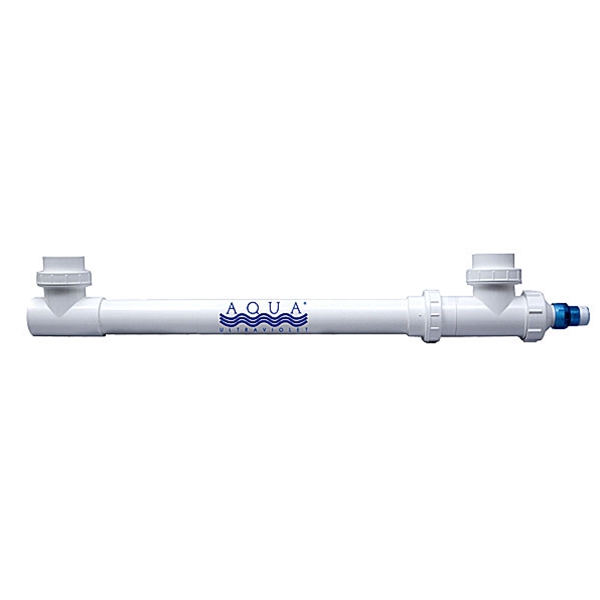

Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer – 6,000 Gallon Ponds (A00345)
The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer is ideal for ponds, aquariums and water features. The rugged design of the Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer has features that allow for quick installation and easy maintenance.
The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer will clear your water in 3 to 5 days, sometimes even overnight and keep it that way. Performance is guaranteed when sized, installed and operated according to Aqua UV’s instructions.
The rotating union of the Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer gives you the flexibility to adjust the inlet and outlet to the perfect position for your installation.
Key Features
- Housing comes with a lifetime warranty and will not degrade over time from the ultraviolet
- The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer is manufactured with only the highest quality components and production standards
- Patented slimline lamp lasts an industry high of up to 14 months of continuous operation – no other lamp on the market lasts as long
- UV lamp has a 99.9% effective kill rate
- Easy twist cap for easy quartz sleeve maintenance – just one cap to twist for access to the quartz sleeve
- Quartz sleeve allows the lamp to reach its optimum operating temperature and is made of the finest quality quartz, HL Q200, which allows for a 99.9 % transmission rate
- Quick release T’s for easy installation and winterization
- Lamp is positioned in the housing for maximum UV effectiveness
- Transformer is self starting, thermally protected and designed for outdoor use
- Transformer is exactly matched to the lamp for maximum Watt output
- Easy to remove remote power supply
- The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer is designed to allow maximum flow rates to fully utilize your pump
- Slender housing design allows for higher UV dosage
- 15 ft. power cord
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet
- Weatherproof but not submersible – must be installed outside of the pond
- DO NOT USE in combination with high-pressure waterfall pumps
- Water has to be pumped through the UVC – do not operate on gravity feed
- Ultraviolet clarifiers eliminate green water – they do not eliminate blanket weed / string algae
- The Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer is not approved for use in swimming pools or salt water
Specifications
| Aqua UV Part Number | A00345 |
| Max. Pond Size (when used as a clarifier) (50 to 75 % plant coverage required) |
6,000 gallons |
| Maximum Flow Rate (when used as a clarifier) |
3,000 GPH |
| Max. Pond Size (when used as a sterilizer) |
2,000 gallons |
| Maximum Flow Rate (when used as a sterilizer) |
2,900 GPH |
| UV Power | 40 W |
| Inlet Connection | 2″ SLIP |
| Outlet Connection | 2″ SLIP |
| Power Cord Length | 15 ft. |
| Wiper Included | no |
| Voltage | 120 V / 60 Hz. |
| Dimensions | 37-3/8″ L x 6″ W x 2-1/2″ H |
Replacement Parts
At PondUSA.com we carry the complete line of Aqua UV replacement parts for your Aqua UV 40 Watt Classic Twist UV Clarifier / Sterilizer. Whether you need a replacement UV lamp, a quartz sleeve or any other spare parts … we can help.
