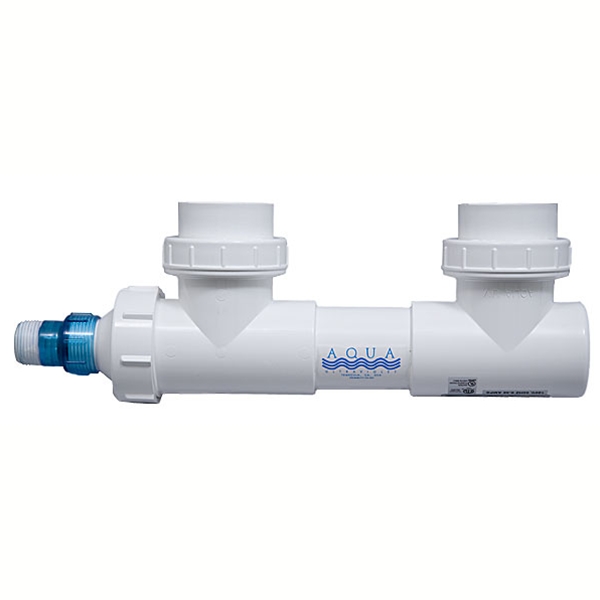

Aqua UV 15 Watt Classic UV Clarifier / Sterilizer – 2,000 Gallon Ponds
The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer is ideal for ponds, aquariums and water features. The rugged design of the Aqua UV 15 Watt Classic UV Clarifier / Sterilizer has features that allow for quick installation and easy maintenance.
The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer will clear your water in 3 to 5 days, sometimes even overnight and keep it that way. Performance is guaranteed when sized, installed and operated according to Aqua UV’s instructions.
Key Features
- Housing comes with a lifetime warranty and will not degrade over time from the ultraviolet
- The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer is manufactured with only the highest quality components and production standards
- Patented slimline lamp lasts an industry high of up to 14 months of continuous operation – no other lamp on the market lasts as long
- UV lamp has a 99.9% effective kill rate
- Easy twist cap for easy quartz sleeve maintenance – just one cap to twist for access to the quartz sleeve
- Quartz sleeve allows the lamp to reach its optimum operating temperature and is made of the finest quality quartz, HL Q200, which allows for a 99.9 % transmission rate
- Quick release T’s for easy installation and winterization
- Lamp is positioned in the housing for maximum UV effectiveness
- Transformer is self starting, thermally protected and designed for outdoor use
- Transformer is exactly matched to the lamp for maximum Watt output
- Easy to remove remote power supply
- The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer is designed to allow maximum flow rates to fully utilize your pump
- Slender housing design allows for higher UV dosage
- 15 ft. power cord
- The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer is available with or without a wiper
Warranty
- 1-year manufacturer’s limited warranty
IMPORTANT
- The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer must be plugged in to a properly grounded and GFCI (Ground Fault Circuit Interrupter) protected 120 Volt outlet
- Weatherproof but not submersible – must be installed outside of the pond
- DO NOT USE in combination with high-pressure waterfall pumps
- Water has to be pumped through the UVC – do not operate on gravity feed
- Ultraviolet clarifiers eliminate green water – they do not eliminate blanket weed / string algae
- The Aqua UV 15 Watt Classic UV Clarifier / Sterilizer is not approved for use in swimming pools or salt water
Specifications
| Aqua UV Part Numbers | A00017 | A00013 |
| Max. Pond Size (when used as a clarifier) (50 to 75 % plant coverage required) |
2,000 gallons | 2,000 gallons |
| Maximum Flow Rate (when used as a clarifier) |
1,800 GPH | 1,800 GPH |
| Max. Pond Size (when used as a sterilizer) |
500 gallons | 500 gallons |
| Maximum Flow Rate (when used as a sterilizer) |
700 GPH | 700 GPH |
| UV Power | 15 W | 15 W |
| Inlet Connection | 2″ SLIP | 2″ SLIP |
| Outlet Connection | 2″ SLIP | 2″ SLIP |
| Power Cord Length | 15 ft. | 15 ft. |
| Wiper Included | no | yes |
| Voltage | 120 V / 60 Hz. | 120 V / 60 Hz. |
| Dimensions | 16″ L x 6″ W x 2-1/2″ H | 16″ L x 6″ W x 2-1/2″ H |
Replacement Parts
At PondUSA.com we carry the complete line of Aqua UV replacement parts for your Aqua UV 15 Watt Classic UV Clarifier / Sterilizer. Whether you need a replacement UV lamp, a quartz sleeve or any other spare parts … we can help.
